HOME > AUTO TRANSMISSION CHAIN > SHORT PITCH PRECISION ROLLER CHAINS (A Series) |
|
|
|
|

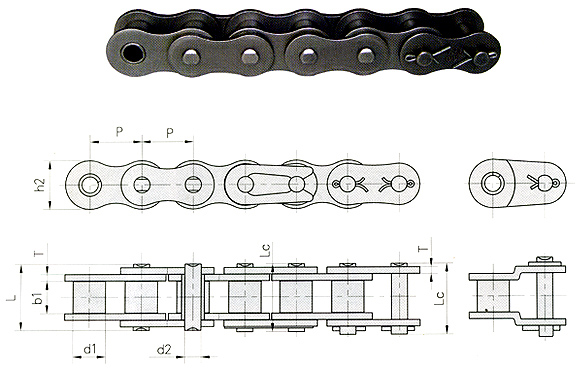

DIN/ISO Chain No.
|
ANSI chain no. |
Pich |
Roller diamenter |
Width between inner plates |
Pin diamenter |
Pin length |
Inner plate depth |
Plate thick-ness |
Utimate tensile strength |
Average tensile strength |
Weight per meter |
p |
d1
max |
b1
min |
d2
max |
L
max |
Lc
max |
h2
max |
t/t
max |
Q
min |
Qo |
q |
mm |
mm |
mm |
mm |
mm |
mm |
mm |
mm |
kN |
KN |
kg/m |
04C-1 |
25 |
6.350 |
3.30 |
3.18 |
2.31 |
7.90 |
8.40 |
6.00 |
0.80 |
3.50 |
4.6 |
0.15 |
06C-1 |
35 |
9.525 |
5.08 |
4.77 |
3.58 |
12.4013.17 |
9.00 |
1.30 |
7.90 |
10.8 |
0.33 |
08A-1 |
40 |
12.700 |
7.95 |
7.85 |
3.96 |
16.60 |
17.80 |
12.00 |
1.50 |
14.10 |
17.5 |
0.62 |
10A-1 |
50 |
15.875 |
10.16 |
9.40 |
5.08 |
20.07 |
22.20 |
15.09 |
2.03 |
22.20 |
29.4 |
1.02 |
12A-1 |
60 |
19.050 |
11.91 |
12.57 |
5.94 |
25.90 |
27.70 |
18.00 |
2.42 |
31.80 |
41.5 |
1.50 |
16A-1 |
80 |
25.400 |
15.88 |
15.75 |
7.92 |
32.70 |
35.00 |
24.00 |
3.25 |
56.70 |
69.4 |
2.60 |
20A-1 |
100 |
31.750 |
19.05 |
18.90 |
9.53 |
40.40 |
44.70 |
30.00 |
4.00 |
88.50 |
109.2 |
3.91 |
24A-1 |
120 |
38.100 |
22.23 |
25.22 |
11.10 |
50.30 |
54.30 |
35.70 |
4.80 |
127.00 |
156.3 |
5.62 |
28A-1 |
140 |
44.450 |
25.40 |
25.22 |
12.70 |
54.40 |
59.00 |
41.00 |
5.60 |
172.40 |
212.0 |
7.50 |
32A-1 |
160 |
50.800 |
28.58 |
31.55 |
14.27 |
64.80 |
69.60 |
47.80 |
6.40 |
226.80 |
278.9 |
10.10 |
40A-1 |
200 |
63.500 |
39.68 |
37.85 |
19.85 |
80.30 |
87.20 |
60.00 |
8.00 |
353.80 |
413.6 |
16.15 |
48A-1 |
240 |
76.200 |
47.63 |
47.35 |
23.81 |
95.50 |
103.00 |
72.39 |
9.50 |
510.30 |
622.5 |
23.20 |
|
